Ceylan::Maths::Linear::HomogeneousMatrix3 Class Reference

#include <CeylanHomogeneousMatrix3.h>

Inheritance diagram for Ceylan::Maths::Linear::HomogeneousMatrix3:

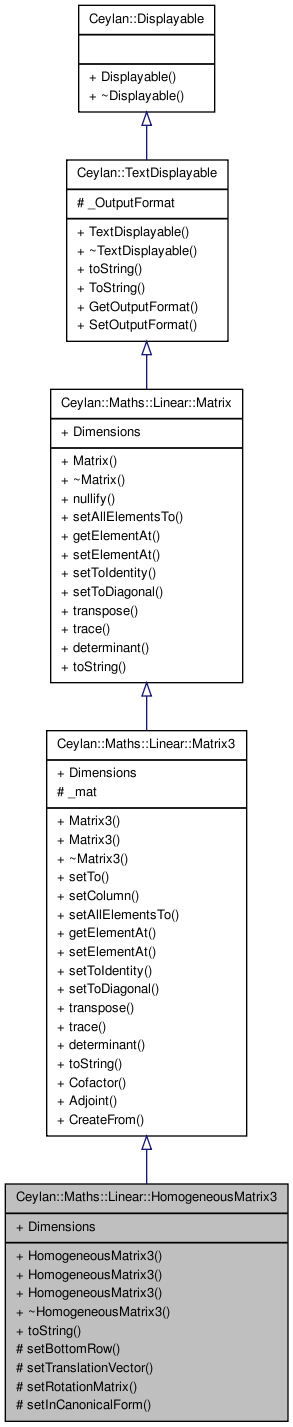

Collaboration diagram for Ceylan::Maths::Linear::HomogeneousMatrix3:

Public Types
enum	TextOutputFormat { rawText, html }
	Defines what text output formats for TextDisplayable instances are available. More...
Public Member Functions
	HomogeneousMatrix3 (const Maths::Linear::Matrix2 &r, const Maths::Linear::Vector2 &v)
	Constructs an homogeneous 3x3 matrix from r, a 2x2 rotation matrix, and from t, a 2D translation vector.
	HomogeneousMatrix3 (AngleInDegrees angle, const Maths::Linear::Vector2 &v)
	Constructs an homogeneous 3x3 matrix whose 2x2 matrix corresponds to a rotation of angle in trigonometrical sens (direction) with t as a 2D translation vector.
	HomogeneousMatrix3 (Real r0=0, Real r1=0, Real r2=0, Real r3=0, Real t0=0, Real t1=0)
	Constructs a new homogenous 3x3 matrix with specified elements.
virtual	~HomogeneousMatrix3 () throw ()
	Copy constructor.
virtual const std::string	toString (VerbosityLevels level=high) const
	Returns a user-friendly description of the state of this object.
virtual void	setTo (Real x0=0, Real x1=0, Real x2=0, Real y0=0, Real y1=0, Real y2=0, Real z0=0, Real z1=0, Real z2=0)
	Reassigns all matrix elements.
virtual void	setColumn (MatrixIndex columnNumber, const Vector3 &newColumn)
	Reassigns specified column of this matrix.
virtual void	setAllElementsTo (Real commonValue)
	Sets this matrix so that all its elements equal commonValue.
virtual Real	getElementAt (MatrixIndex abscissa, MatrixIndex ordinate) const
	Returns indexed element.
virtual void	setElementAt (MatrixIndex abscissa, MatrixIndex ordinate, Real newValue)
	Sets indexed element to specified value.
virtual void	setToIdentity ()
	Sets this matrix to the identity matrix.
virtual void	setToDiagonal (Real diagonalTerm)
	Sets this matrix to the a diagonal matrix whose diagonal term is diagonalTerm.
virtual void	transpose ()
	Tranposes this matrix.
virtual Real	trace () const
	Computes this matrix's trace.
virtual Real	determinant () const
	Computes this matrix's determinant.
virtual void	nullify ()
	Sets this matrix to the null matrix (all elements zeroed).
Static Public Member Functions
static Matrix3	Cofactor (const Matrix3 &m)
	Returns the cofactor matrix.
static Matrix3	Adjoint (const Matrix3 &m)
	Returns the adjoint matrix.
template<typename T >
static Matrix3	CreateFrom (T endomorphism)
	Returns the matrix corresponding to specified endomorphism.
static const std::string	ToString (std::list< TextDisplayable * > displayables, Ceylan::VerbosityLevels level=Ceylan::high)
	Returns a user-friendly description of this list of pointers to text displayable instances.
static TextOutputFormat	GetOutputFormat ()
	Returns the current overall text format to be used by TextDisplayable instances.
static void	SetOutputFormat (TextOutputFormat newOutputFormat)
	Sets the current overall text format to be used by TextDisplayable instances.
Static Public Attributes
static const MatrixIndex	Dimensions = 3
	Tells what is the dimension for this Matrix.
Protected Member Functions
virtual void	setBottomRow ()
	Creates the camera matrix in a 2D world, whose focal length and center of interest are specified.
virtual void	setTranslationVector (const Vector2 &v)
	Sets the embedded translation vector of this homogeneous matrix.
virtual void	setRotationMatrix (const Matrix2 &m)
	Sets the embedded rotation matrix of this homogeneous matrix.
virtual void	setInCanonicalForm ()
	Sets this homogeneous matrix in its canonical form, where bottom-right element is 1.
Protected Attributes
Real	_mat [Dimensions][Dimensions]
	The nine coordinates of this matrix.
Static Protected Attributes
static TextOutputFormat	_OutputFormat = rawText
	The text format to be used currently by TextDisplayable instances.
Friends
CEYLAN_DLL friend HomogeneousMatrix3	operator* (const HomogeneousMatrix3 &hm1, const HomogeneousMatrix3 &hm2)
	Multiplies efficiently two homogeneous matrices: HomogeneousMatrix3 result = m1 * m2.
CEYLAN_DLL friend Vector2	operator* (const HomogeneousMatrix3 &hm, const Vector2 &v)
	Multiplies an homogeneous 3x3 matrix by a 2D vector, returning another 2D vector: Vector2 result = hm3 * v2.

Detailed Description

Definition at line 106 of file CeylanHomogeneousMatrix3.h.

Member Enumeration Documentation

enum Ceylan::TextDisplayable::TextOutputFormat [inherited]

Defines what text output formats for TextDisplayable instances are available.

Enumerator:

rawText
html

Definition at line 124 of file CeylanTextDisplayable.h.

Constructor & Destructor Documentation

HomogeneousMatrix3::HomogeneousMatrix3	(	const Maths::Linear::Matrix2 &	r,
		const Maths::Linear::Vector2 &	v
	)

Constructs an homogeneous 3x3 matrix from r, a 2x2 rotation matrix, and from t, a 2D translation vector.

Note:: r may not be a strict rotation matrix, it may be a stretching (determinant non-equal to 1 for example) matrix.

Definition at line 61 of file CeylanHomogeneousMatrix3.cc.

References setBottomRow(), setRotationMatrix(), and setTranslationVector().

HomogeneousMatrix3::HomogeneousMatrix3	(	AngleInDegrees	angle,
		const Maths::Linear::Vector2 &	v
	)

Constructs an homogeneous 3x3 matrix whose 2x2 matrix corresponds to a rotation of angle in trigonometrical sens (direction) with t as a 2D translation vector.

Parameters:

angle

in degrees.

Definition at line 97 of file CeylanHomogeneousMatrix3.cc.

References Ceylan::Maths::Linear::Matrix2::CreateFromRotation(), setBottomRow(), setRotationMatrix(), and setTranslationVector().

HomogeneousMatrix3::HomogeneousMatrix3	(	Real	r0 = `0`,
		Real	r1 = `0`,
		Real	r2 = `0`,
		Real	r3 = `0`,
		Real	t0 = `0`,
		Real	t1 = `0`
	)			`[explicit]`

Constructs a new homogenous 3x3 matrix with specified elements.

This matrix can be seen as the following block matrix: [ r, t; 0, 1 ], where r = [ r0, r1; r2, r3 ] is a 2x2 matrix and t = [ t0; t1 ] a 2D vector.

Note:: If no argument is specified, constructs the null matrix.

Definition at line 77 of file CeylanHomogeneousMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, and setBottomRow().

HomogeneousMatrix3::~HomogeneousMatrix3 ( ) throw () [virtual]

Copy constructor.

Note:: Cannot be 'explicit', as it would prevent the multiply operator HomogeneousMatrix3 m = m1 * m2. to return a HomogeneousMatrix3 on the stack.

No need to define it since the basic compiler-generated code is correct. Basic virtual destructor.

Definition at line 109 of file CeylanHomogeneousMatrix3.cc.

Member Function Documentation

Matrix3 Matrix3::Adjoint ( const Matrix3 & m ) [static, inherited]

Returns the adjoint matrix.

Definition at line 339 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::Cofactor(), and Ceylan::Maths::Linear::Matrix3::transpose().

Matrix3 Matrix3::Cofactor ( const Matrix3 & m ) [static, inherited]

Returns the cofactor matrix.

Definition at line 301 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat.

Referenced by Ceylan::Maths::Linear::Matrix3::Adjoint().

template<typename T >

static Matrix3 Ceylan::Maths::Linear::Matrix3::CreateFrom ( T endomorphism ) [inline, static, inherited]

Returns the matrix corresponding to specified endomorphism.

Parameters:

endomorphism

can be a functor (ex: Endomorphism3DFunctor) or a simple function: Vector3 -> Vector3.

Note:: C++ does not allow virtual template method.

Definition at line 357 of file CeylanMatrix3.h.

References Ceylan::Maths::Linear::Matrix3::setColumn(), and Ceylan::Maths::Linear::Vector3::setTo().

Real Matrix3::determinant ( ) const [virtual, inherited]

Computes this matrix's determinant.

Implements Ceylan::Maths::Linear::Matrix.

Definition at line 227 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat.

Referenced by Ceylan::Maths::Linear::operator!().

Real Matrix3::getElementAt	(	MatrixIndex	abscissa,
		MatrixIndex	ordinate
	)			const `[virtual, inherited]`

Returns indexed element.

Index ranges from 0 to Dimensions-1 for both dimensions.

Exceptions:

MathsException

if index is out of bounds and if in debug mode.

Implements Ceylan::Maths::Linear::Matrix.

Definition at line 140 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, and Ceylan::Maths::Linear::Matrix3::Dimensions.

Referenced by Ceylan::Locatable2D::getCenter().

TextDisplayable::TextOutputFormat TextDisplayable::GetOutputFormat ( ) [static, inherited]

Returns the current overall text format to be used by TextDisplayable instances.

Definition at line 63 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::formatStringList(), Ceylan::formatStringMap(), Ceylan::XML::XMLMarkup::toString(), Ceylan::Maths::Linear::Vector3::toString(), Ceylan::Maths::Linear::Vector2::toString(), Ceylan::Maths::Linear::Tripoint::toString(), Ceylan::Module::toString(), Ceylan::Maths::Linear::Matrix3::toString(), Ceylan::Maths::Linear::Matrix2::toString(), toString(), and Ceylan::Maths::Linear::Bipoint::toString().

void Matrix::nullify ( ) [virtual, inherited]

Sets this matrix to the null matrix (all elements zeroed).

Definition at line 53 of file CeylanMatrix.cc.

References Ceylan::Maths::Linear::Matrix::setAllElementsTo().

void Matrix3::setAllElementsTo ( Real commonValue ) [virtual, inherited]

Sets this matrix so that all its elements equal commonValue.

Implements Ceylan::Maths::Linear::Matrix.

Definition at line 129 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, and Ceylan::Maths::Linear::Matrix3::Dimensions.

void HomogeneousMatrix3::setBottomRow ( ) [protected, virtual]

Creates the camera matrix in a 2D world, whose focal length and center of interest are specified.

Sets the bottom row of the homogenous matrix to all zero but a final one.

Definition at line 182 of file CeylanHomogeneousMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat.

Referenced by HomogeneousMatrix3().

void Matrix3::setColumn	(	MatrixIndex	columnNumber,
		const Vector3 &	newColumn
	)			`[virtual, inherited]`

Reassigns specified column of this matrix.

Note:: Column numbers range from 0 to 2 (included).

Definition at line 118 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, Ceylan::Maths::Linear::Vector3::_vec, and Ceylan::Maths::Linear::Matrix3::Dimensions.

Referenced by Ceylan::Maths::Linear::Matrix3::CreateFrom().

void Matrix3::setElementAt	(	MatrixIndex	abscissa,
		MatrixIndex	ordinate,
		Real	newValue
	)			`[virtual, inherited]`

Sets indexed element to specified value.

Index ranges from 0 to Dimensions-1 for both dimensions.

Exceptions:

MathsException

if index is out of bounds and if in debug mode.

Implements Ceylan::Maths::Linear::Matrix.

Definition at line 157 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, and Ceylan::Maths::Linear::Matrix3::Dimensions.

Referenced by Ceylan::Locatable2D::setCenter().

void HomogeneousMatrix3::setInCanonicalForm ( ) [protected, virtual]

Sets this homogeneous matrix in its canonical form, where bottom-right element is 1.

Note:: Does not change anything in the meaning of this matrix, all coordinates are divided by this bottom-right element if not null or almost, it is just a matter of numerical convention.

Exceptions:

LinearException

if bottom-right element is zero.

Definition at line 217 of file CeylanHomogeneousMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, Dimensions, and Ceylan::Maths::IsNull().

void TextDisplayable::SetOutputFormat ( TextOutputFormat newOutputFormat ) [static, inherited]

Sets the current overall text format to be used by TextDisplayable instances.

Parameters:

newOutputFormat

the new output format.

Definition at line 72 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::Log::LogHolder::LogHolder().

void HomogeneousMatrix3::setRotationMatrix ( const Matrix2 & m ) [protected, virtual]

Sets the embedded rotation matrix of this homogeneous matrix.

Assigns specified Matrix2 on top-left position.

Definition at line 205 of file CeylanHomogeneousMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, and Ceylan::Maths::Linear::Matrix2::getElementAt().

Referenced by HomogeneousMatrix3().

void Matrix3::setTo	(	Real	x0 = `0`,
		Real	x1 = `0`,
		Real	x2 = `0`,
		Real	y0 = `0`,
		Real	y1 = `0`,
		Real	y2 = `0`,
		Real	z0 = `0`,
		Real	z1 = `0`,
		Real	z2 = `0`
	)			`[virtual, inherited]`

Reassigns all matrix elements.

Definition at line 100 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat.

void Matrix3::setToDiagonal ( Real diagonalTerm ) [virtual, inherited]

Sets this matrix to the a diagonal matrix whose diagonal term is diagonalTerm.

Implements Ceylan::Maths::Linear::Matrix.

Definition at line 183 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, and Ceylan::Maths::Linear::Matrix3::Dimensions.

Referenced by Ceylan::Maths::Linear::Matrix3::setToIdentity().

void Matrix3::setToIdentity ( ) [virtual, inherited]

Sets this matrix to the identity matrix.

Reimplemented from Ceylan::Maths::Linear::Matrix.

Definition at line 174 of file CeylanMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::setToDiagonal().

void HomogeneousMatrix3::setTranslationVector ( const Vector2 & v ) [protected, virtual]

Sets the embedded translation vector of this homogeneous matrix.

Assigns specified Vector2 to the top of last column.

Definition at line 195 of file CeylanHomogeneousMatrix3.cc.

References Ceylan::Maths::Linear::Matrix3::_mat, and Ceylan::Maths::Linear::Vector2::getElementAt().

Referenced by HomogeneousMatrix3().

const std::string TextDisplayable::ToString	(	std::list< TextDisplayable * >	displayables,
		Ceylan::VerbosityLevels	level = `Ceylan::high`
	)			`[static, inherited]`
