Ceylan::Plugin Class Reference

Plugin encapsulation for Dynamic Shared Object (DSO) management. More...

#include <CeylanPlugin.h>

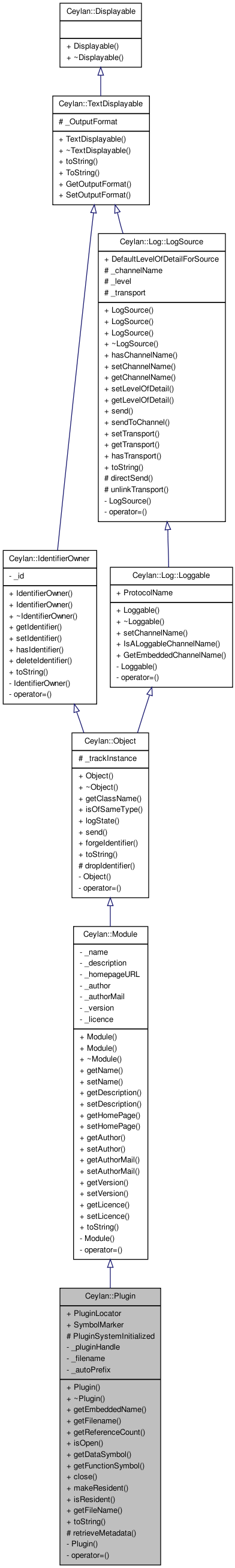

Inheritance diagram for Ceylan::Plugin:

[legend]

Collaboration diagram for Ceylan::Plugin:

[legend]

List of all members.

Public Types
enum	TextOutputFormat { rawText, html }
	Defines what text output formats for TextDisplayable instances are available. More...
enum	TextOutputFormat { rawText, html }
	Defines what text output formats for TextDisplayable instances are available. More...
Public Member Functions
	Plugin (const std::string &filename="", bool autoPrefix=true)
	Constructs a reference on a plugin (DSO) by trying to load an appropriate file.
virtual	~Plugin () throw ()
	Virtual destructor.
virtual std::string	getEmbeddedName ()
	Returns the plugin-embedded name, as read in the library.
virtual std::string	getFilename () const
	Returns the actual filename of this plugin.
virtual ReferenceCount	getReferenceCount () const
	Returns the current reference count of this plugin.
bool	isOpen () const
	Tells whether the file has been loaded and opened as a shared object.
void *	getDataSymbol (const std::string &dataName) const
	Returns the reference on the data symbol dataName within the opened plugin (DSO).
BasicFunctionPointer	getFunctionSymbol (const std::string &functionName) const
void	close ()
	Closes previously opened shared object.
void	makeResident ()
	Mark this plugin so that it cannot be closed dynamically.
bool	isResident () const
	Checks whether this plugin has been marked as resident.
const std::string &	getFileName () const
	Returns the filename corresponding to this plugin, from the loader point of view.
virtual const std::string	toString (VerbosityLevels level=high) const
	Returns a user-friendly description of the state of this object.
virtual std::string	getName () const
	Returns the name of this module.
virtual void	setName (const std::string &name)
	Sets the name of this module.
virtual std::string	getDescription () const
	Returns this module's description.
virtual void	setDescription (const std::string &description)
	Sets this module's description.
virtual std::string	getHomePage () const
	Returns this module's home page URL.
virtual void	setHomePage (const std::string &homePage)
	Sets this module's home page URL.
virtual std::string	getAuthor () const
	Returns this module's author.
virtual void	setAuthor (const std::string &author)
	Sets this module's author.
virtual std::string	getAuthorMail () const
	Returns this module's author e-mail address.
virtual void	setAuthorMail (const std::string &authorMail)
	Sets this module's author e-mail address.
virtual const Ceylan::Version &	getVersion () const
	Returns this module's full version.
virtual void	setVersion (const Ceylan::Version &version)
	Sets this module's version, which is copied internally.
virtual std::string	getLicence () const
	Returns this module's release licence.
virtual void	setLicence (const std::string &licence)
	Sets this module's release licence.
virtual const std::string	getClassName () const
virtual bool	isOfSameType (const Object &other) const
	Returns whether other is an instance of the same type as this object.
virtual void	logState (Ceylan::VerbosityLevels level=Ceylan::high)
	Uses its dedicated log channel to display its state.
virtual void	send (const std::string &message, Log::LevelOfDetail levelOfDetail=Log::DefaultLevelOfDetailForMessage)
	Sends message to the internal channel.
virtual void	forgeIdentifier ()
	Forges this object's identifier.
Identifier &	getIdentifier () const
	Returns this IdentifierOwner's identifier.
void	setIdentifier (Identifier &id)
	Sets this IdentifierOwner's identifier.
bool	hasIdentifier () const
	Returns whether this IdentifierOwner has a stored identifier.
void	deleteIdentifier ()
	Deletes this IdentifierOwner's identifier.
void	setChannelName (const std::string &channelName)
	Sets this Logable channel name.
bool	hasChannelName () const
	Returns whether this Log source has a registered channel name.
std::string	getChannelName () const
	Returns this LogSource channel name.
void	setLevelOfDetail (LevelOfDetail newLevel)
	Sets this LogSource level of detail of interest.
LevelOfDetail	getLevelOfDetail () const
	Returns this LogSource channel name.
virtual void	sendToChannel (const std::string &channel, const std::string &message, LevelOfDetail levelOfDetail=DefaultLevelOfDetailForMessage) const
	Sends message to the specified channel, through known LogTransport.
virtual void	setTransport (LogTransport &newTransport)
	Sets a new Log transport for this LogSource.
virtual LogTransport *	getTransport () const
	Returns this LogSource's Log transport.
virtual bool	hasTransport () const
	Tells whether this LogSource has a registered Log transport.
Static Public Member Functions
static const std::string	ToString (std::list< TextDisplayable * > displayables, Ceylan::VerbosityLevels level=Ceylan::high)
	Returns a user-friendly description of this list of pointers to text displayable instances.
static const std::string	ToString (std::list< TextDisplayable * > displayables, Ceylan::VerbosityLevels level=Ceylan::high)
	Returns a user-friendly description of this list of pointers to text displayable instances.
static TextOutputFormat	GetOutputFormat ()
	Returns the current overall text format to be used by TextDisplayable instances.
static TextOutputFormat	GetOutputFormat ()
	Returns the current overall text format to be used by TextDisplayable instances.
static void	SetOutputFormat (TextOutputFormat newOutputFormat)
	Sets the current overall text format to be used by TextDisplayable instances.
static void	SetOutputFormat (TextOutputFormat newOutputFormat)
	Sets the current overall text format to be used by TextDisplayable instances.
static bool	IsALoggableChannelName (const std::string &channelName)
	Returns whether the specified channel name is an object channel name, based on the possible presence of the protocol prefix and separators (typically, loggable://).
static const std::string	GetEmbeddedChannelName (const std::string &fullChannelName)
	Returns the real channel name used by a Loggable by removing the protocol prefix and separators (typically, 'loggable://').
Static Public Attributes
static Ceylan::System::FileLocator	PluginLocator
	This locator keeps the plugin search paths available.
static const std::string	SymbolMarker = CEYLAN_SYMBOL_MARKER
	The characters that will be added automatically between the plugin name and the loaded symbols if auto-prefix is on.
static const std::string	ProtocolName = "loggable"
static const LevelOfDetail	DefaultLevelOfDetailForSource = 10
	The default level of detail of a Log source.
Protected Member Functions
virtual void	retrieveMetadata ()
	Reads from plugin the usual module metadata, such as plugin description, author, version, licence, etc.
void	dropIdentifier ()
	Removes this Object's identifier, in order to avoid class name mangling.
virtual void	directSend (const std::string &channel, const std::string &message, LevelOfDetail levelOfDetail=DefaultLevelOfDetailForMessage) const
	Internal method to send messages.
virtual void	unlinkTransport ()
	Suppresses the link between this LogSource and its Log transport.
Protected Attributes
bool	_trackInstance
	Tells whether this instance's lifecycle should be advertised in log system.
std::string	_channelName
	Stores this LogSource channel name.
LevelOfDetail	_level
	The current level of detail of interest for this Log source.
LogTransport *	_transport
	The LogTransport to be used for sending messages.
Static Protected Attributes
static Ceylan::Uint16	PluginSystemInitialized = 0
	Tells whether the plugin system is currently initialized, by recording the current number of times the system was requested minus the number of times it was released.
static TextOutputFormat	_OutputFormat = rawText
	The text format to be used currently by TextDisplayable instances.
static TextOutputFormat	_OutputFormat = rawText
	The text format to be used currently by TextDisplayable instances.
Private Types
typedef Ceylan::Uint32	ReferenceCount
typedef void (	BasicFunctionPointer )(void)
	Pointer to function, used to distinguish pointer-to-function loaded symbols from pointer-to-object ones.
Private Member Functions
	Plugin (const Plugin &source)
	Copy constructor made private to ensure that it will never be called.
Plugin &	operator= (const Plugin &source)
	Assignment operator made private to ensure that it will never be called.
Private Attributes
SystemSpecificPluginHandle *	_pluginHandle
	The plugin handle returned by the loader.
std::string	_filename
	The user-specified filename of the plugin.
bool	_autoPrefix
	Tells whether the plugin loader expects symbols to be prefixed according to CEYLAN_PLUGIN_* macros.

Detailed Description

Plugin encapsulation for Dynamic Shared Object (DSO) management.

This class allows to load arbitrary, user-specified plugins at runtime.

Note:: The plugin feature must be available to successfully create and use a Plugin object.

See also:: Features::arePluginsSupported

Note:: Our plugin system relies on ltdl.

Definition at line 128 of file CeylanPlugin.h.

Member Typedef Documentation

typedef void*(* Ceylan::Plugin::BasicFunctionPointer)(void) [private]

Pointer to function, used to distinguish pointer-to-function loaded symbols from pointer-to-object ones.

In ISO C++, those two kinds of pointers are especially risky to cast to each other.

No 'extern "C"' declaration seems needed.

Definition at line 158 of file CeylanPlugin.h.

typedef Ceylan::Uint32 Ceylan::Plugin::ReferenceCount [private]

Definition at line 142 of file CeylanPlugin.h.

Member Enumeration Documentation

enum Ceylan::TextDisplayable::TextOutputFormat [inherited]

Defines what text output formats for TextDisplayable instances are available.

Enumerator:

rawText
html

Definition at line 124 of file CeylanTextDisplayable.h.

enum Ceylan::TextDisplayable::TextOutputFormat [inherited]

Defines what text output formats for TextDisplayable instances are available.

Enumerator:

rawText
html

Definition at line 124 of file CeylanTextDisplayable.h.

Constructor & Destructor Documentation

Plugin::Plugin	(	const std::string &	filename = `""`,
		bool	autoPrefix = `true`
	)			`[explicit]`

Constructs a reference on a plugin (DSO) by trying to load an appropriate file.

Use isOpen() to see whether the plugin could be loaded succcessfully.

Parameters:

	filename	the filename of the shared library that should be loaded. If the filename has no directory component, the plugin will be searched through: 1. user-defined search path, see PluginLocator 2. libltdl's search path, which is the value of the environment variable LTDL_LIBRARY_PATH 3. system-dependent library search path, for example on Linux it is LD_LIBRARY_PATH. Different file name extensions will be appended to the file name until the plugin is found: the libtool archive extension `.la', the extension used for native dynamic libraries on the host platform, e.g., `.so', `.sl', etc. This lookup strategy was designed to allow programs that do not have knowledge about native dynamic libraries naming conventions to be able to open dynamically such libraries as well as libtool modules transparently. If filename is an empty string, the binary loaded will be the main program itself.
	autoPrefix	if true, then if a symbol 'foo' of a plugin named 'my-Plugin' is requested, then the actually loaded symbol will be 'my_Plugin_LTX_foo'. It allows all plugins to implement the same API while still being able to be able to be loaded simultaneously. Otherwise their name would clash and prevent from linking.

Exceptions:

PluginException

if the plugin feature is not available or if the plugin could not be loaded successfully.

Definition at line 113 of file CeylanPlugin.cc.

References _pluginHandle, Ceylan::System::FileLocator::getPaths(), PluginLocator, PluginSystemInitialized, and retrieveMetadata().

Plugin::~Plugin ( ) throw () [virtual]

Virtual destructor.

Definition at line 196 of file CeylanPlugin.cc.

References close(), and PluginSystemInitialized.

Ceylan::Plugin::Plugin ( const Plugin & source ) [private]

Copy constructor made private to ensure that it will never be called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Member Function Documentation

void Plugin::close ( )

Closes previously opened shared object.

Exceptions:

PluginException

if the plugin feature is not available or if the plugin could not be closed successfully.

Definition at line 427 of file CeylanPlugin.cc.

References _pluginHandle.

Referenced by ~Plugin().

void IdentifierOwner::deleteIdentifier ( ) [inherited]

Deletes this IdentifierOwner's identifier.

Definition at line 128 of file CeylanIdentifierOwner.cc.

References Ceylan::IdentifierOwner::_id, and Ceylan::emergencyShutdown().

Referenced by Ceylan::Object::dropIdentifier(), and Ceylan::IdentifierOwner::~IdentifierOwner().

void LogSource::directSend	(	const std::string &	channel,
		const std::string &	message,
		LevelOfDetail	levelOfDetail = `DefaultLevelOfDetailForMessage`
	)			const `[protected, virtual, inherited]`

Internal method to send messages.

Filters them out if their level of detail is higher than the one of this log source.

Definition at line 164 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_transport, and Ceylan::Log::LogTransport::propagate().

Referenced by Ceylan::Log::LogSource::send(), and Ceylan::Log::LogSource::sendToChannel().

void Object::dropIdentifier ( ) [protected, inherited]

Removes this Object's identifier, in order to avoid class name mangling.

Note:: This method should be used at least after the last message sent from an Object's deepest constructor (the final child).

Definition at line 261 of file CeylanObject.cc.

References Ceylan::IdentifierOwner::deleteIdentifier().

Referenced by Ceylan::Object::forgeIdentifier(), and Ceylan::Object::Object().

void Object::forgeIdentifier ( ) [virtual, inherited]

Forges this object's identifier.

See also:: TextIdentifier

Exceptions:

Log::LogException

if the identifier could not be forged.

Definition at line 211 of file CeylanObject.cc.

References CEYLAN_LOG, Ceylan::Object::dropIdentifier(), Ceylan::IdentifierOwner::getIdentifier(), Ceylan::IdentifierOwner::hasIdentifier(), Ceylan::IdentifierOwner::setIdentifier(), Ceylan::Object::toString(), and Ceylan::Exception::toString().

string Module::getAuthor ( ) const [virtual, inherited]

Returns this module's author.

Definition at line 166 of file CeylanModule.cc.

References Ceylan::Module::_author.

string Module::getAuthorMail ( ) const [virtual, inherited]

Returns this module's author e-mail address.

Definition at line 184 of file CeylanModule.cc.

References Ceylan::Module::_authorMail.

std::string LogSource::getChannelName ( ) const [inherited]

Returns this LogSource channel name.

Definition at line 101 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_channelName.

Referenced by Ceylan::Log::LogSource::toString().

const std::string Object::getClassName ( ) const [virtual, inherited]

Definition at line 102 of file CeylanObject.cc.

References CEYLAN_LOG.

Referenced by Ceylan::Object::isOfSameType().

void * Plugin::getDataSymbol ( const std::string & dataName ) const

Returns the reference on the data symbol dataName within the opened plugin (DSO).

Parameters:

symbol

the data (non-function) symbol to look-up.

Exceptions:

PluginException

if the plugin feature is not available or if the plugin could not be loaded successfully.

See also:: getFunctionSymbol, testCeylanPlugin.cc

Definition at line 340 of file CeylanPlugin.cc.

References _filename, _pluginHandle, dataUtils::f, and isOpen().

Referenced by retrieveMetadata().

string Module::getDescription ( ) const [virtual, inherited]

Returns this module's description.

Definition at line 130 of file CeylanModule.cc.

References Ceylan::Module::_description.

const string Loggable::GetEmbeddedChannelName ( const std::string & fullChannelName ) [static, inherited]

Returns the real channel name used by a Loggable by removing the protocol prefix and separators (typically, 'loggable://').

Definition at line 83 of file CeylanLoggable.cc.

References Ceylan::URI::getEmbeddedURI(), and Ceylan::URI::ProtocolSeparator.

Referenced by Ceylan::Log::ObjectChannel::addMessage(), Ceylan::Log::LogAggregator::createLoggableChannelFrom(), Ceylan::Log::LogAggregator::createObjectChannel(), Ceylan::Log::LogAggregator::findChannel(), and Ceylan::Log::LogAggregator::storeObjectMessage().

string Plugin::getEmbeddedName ( ) [virtual]

Returns the plugin-embedded name, as read in the library.

Exceptions:

ModuleException

if the operation failed.

Definition at line 223 of file CeylanPlugin.cc.

References _pluginHandle.

Referenced by retrieveMetadata().

const std::string& Ceylan::Plugin::getFileName ( ) const

Returns the filename corresponding to this plugin, from the loader point of view.

This name (ex: ceylan-test-plugin.so) can be different from the user-specified one (ex:ceylan-test-plugin).

string Plugin::getFilename ( ) const [virtual]

Returns the actual filename of this plugin.

Exceptions:

ModuleException

if the operation failed.

Definition at line 259 of file CeylanPlugin.cc.

References _pluginHandle.

Referenced by toString().

Plugin::BasicFunctionPointer Plugin::getFunctionSymbol ( const std::string & functionName ) const

Definition at line 373 of file CeylanPlugin.cc.

References _filename, _pluginHandle, dataUtils::f, isOpen(), and Ceylan::toString().

string Module::getHomePage ( ) const [virtual, inherited]

Returns this module's home page URL.

Definition at line 148 of file CeylanModule.cc.

References Ceylan::Module::_homepageURL.

Identifier & IdentifierOwner::getIdentifier ( ) const [inherited]

Returns this IdentifierOwner's identifier.

Exceptions:

IdentifierNotAvailableException

if the operation failed.

Definition at line 83 of file CeylanIdentifierOwner.cc.

References Ceylan::IdentifierOwner::_id.

Referenced by Ceylan::Object::forgeIdentifier().

LevelOfDetail LogSource::getLevelOfDetail ( ) const [inherited]

Returns this LogSource channel name.

Definition at line 119 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_level.

string Module::getLicence ( ) const [virtual, inherited]

Returns this module's release licence.

Definition at line 223 of file CeylanModule.cc.

References Ceylan::Module::_licence.

string Module::getName ( ) const [virtual, inherited]

Returns the name of this module.

Exceptions:

ModuleException

if the operation failed.

Definition at line 112 of file CeylanModule.cc.

References Ceylan::Module::_name.

Referenced by toString(), and Ceylan::Module::toString().

TextDisplayable::TextOutputFormat TextDisplayable::GetOutputFormat ( ) [static, inherited]

Returns the current overall text format to be used by TextDisplayable instances.

Definition at line 63 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::formatStringList(), Ceylan::formatStringMap(), Ceylan::XML::XMLMarkup::toString(), Ceylan::Maths::Linear::Vector3::toString(), Ceylan::Maths::Linear::Vector2::toString(), Ceylan::Maths::Linear::Tripoint::toString(), Ceylan::Module::toString(), Ceylan::Maths::Linear::Matrix3::toString(), Ceylan::Maths::Linear::Matrix2::toString(), Ceylan::Maths::Linear::HomogeneousMatrix3::toString(), and Ceylan::Maths::Linear::Bipoint::toString().

TextDisplayable::TextOutputFormat TextDisplayable::GetOutputFormat ( ) [static, inherited]

Returns the current overall text format to be used by TextDisplayable instances.

Definition at line 63 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::formatStringList(), Ceylan::formatStringMap(), Ceylan::XML::XMLMarkup::toString(), Ceylan::Maths::Linear::Vector3::toString(), Ceylan::Maths::Linear::Vector2::toString(), Ceylan::Maths::Linear::Tripoint::toString(), Ceylan::Module::toString(), Ceylan::Maths::Linear::Matrix3::toString(), Ceylan::Maths::Linear::Matrix2::toString(), Ceylan::Maths::Linear::HomogeneousMatrix3::toString(), and Ceylan::Maths::Linear::Bipoint::toString().

Plugin::ReferenceCount Plugin::getReferenceCount ( ) const [virtual]

Returns the current reference count of this plugin.

This is a reference counter that describes how many times this plugin is currently loaded.

Exceptions:

ModuleException

if the operation failed.

Definition at line 291 of file CeylanPlugin.cc.

References _pluginHandle.

LogTransport * LogSource::getTransport ( ) const [virtual, inherited]

Returns this LogSource's Log transport.

Definition at line 209 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_transport.

const Version & Module::getVersion ( ) const [virtual, inherited]

Returns this module's full version.

Definition at line 202 of file CeylanModule.cc.

References Ceylan::Module::_version.

bool LogSource::hasChannelName ( ) const [inherited]

Returns whether this Log source has a registered channel name.

Definition at line 83 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_channelName.

Referenced by Ceylan::Log::LogSource::toString().

bool IdentifierOwner::hasIdentifier ( ) const [inherited]

Returns whether this IdentifierOwner has a stored identifier.

Definition at line 119 of file CeylanIdentifierOwner.cc.

References Ceylan::IdentifierOwner::_id.

Referenced by Ceylan::Object::forgeIdentifier(), and Ceylan::IdentifierOwner::~IdentifierOwner().

bool LogSource::hasTransport ( ) const [virtual, inherited]

Tells whether this LogSource has a registered Log transport.

Definition at line 218 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_transport.

Referenced by Ceylan::Log::LogSource::setTransport().

bool Loggable::IsALoggableChannelName ( const std::string & channelName ) [static, inherited]

Returns whether the specified channel name is an object channel name, based on the possible presence of the protocol prefix and separators (typically, loggable://).

Definition at line 73 of file CeylanLoggable.cc.

References Ceylan::URI::getProtocolName(), Ceylan::Log::Loggable::ProtocolName, and Ceylan::URI::ProtocolSeparator.

Referenced by Ceylan::Log::LogAggregator::findChannel(), and Ceylan::Log::LogAggregator::store().

bool Object::isOfSameType ( const Object & other ) const [virtual, inherited]

Returns whether other is an instance of the same type as this object.

Parameters:

other

the object whose type is to be compared with this object's type.

See also:: getClassName

Definition at line 140 of file CeylanObject.cc.

References Ceylan::Object::getClassName().

bool Plugin::isOpen ( ) const

Tells whether the file has been loaded and opened as a shared object.

Definition at line 323 of file CeylanPlugin.cc.

References _pluginHandle, and generalUtils::false.

Referenced by getDataSymbol(), getFunctionSymbol(), and toString().

bool Plugin::isResident ( ) const

Checks whether this plugin has been marked as resident.

Returns:: true iff it has been marked as resident.

Exceptions:

PluginException

if the operation failed.

Definition at line 482 of file CeylanPlugin.cc.

References _pluginHandle.

void Object::logState ( Ceylan::VerbosityLevels level = Ceylan::high ) [virtual, inherited]

Uses its dedicated log channel to display its state.

Note:: This is the very convenient combination of a Loggable and a TextDisplayable: it requests this Object to log its textual representation in its own channel.

Parameters:

level

chooses the level of detail

Note:: This method cannot have the const qualifier since the send method might have to forge a new identifier.

Definition at line 149 of file CeylanObject.cc.

References Ceylan::Object::send(), and Ceylan::Object::toString().

void Plugin::makeResident ( )

Mark this plugin so that it cannot be closed dynamically.

This can be useful if a plugin implements some core functionality in the application, which would cause its code to crash if removed.

When loading the running binary as a plugin, it will always be marked as resident.

Exceptions:

PluginException

if the operation failed.

Definition at line 462 of file CeylanPlugin.cc.

References _pluginHandle.

Plugin& Ceylan::Plugin::operator= ( const Plugin & source ) [private]

Assignment operator made private to ensure that it will never be called.

The compiler should complain whenever this undefined operator is called, implicitly or not.

void Plugin::retrieveMetadata ( ) [protected, virtual]

Reads from plugin the usual module metadata, such as plugin description, author, version, licence, etc.

Exceptions:

PluginException

if the operation failed.

Definition at line 541 of file CeylanPlugin.cc.

References dataUtils::e, getDataSymbol(), getEmbeddedName(), Ceylan::Module::setAuthor(), Ceylan::Module::setAuthorMail(), Ceylan::Module::setDescription(), Ceylan::Module::setHomePage(), Ceylan::Module::setLicence(), Ceylan::Module::setName(), Ceylan::Module::setVersion(), and Ceylan::Exception::toString().

Referenced by Plugin().

virtual void Ceylan::Object::send	(	const std::string &	message,
		Log::LevelOfDetail	levelOfDetail = `Log::DefaultLevelOfDetailForMessage`
	)			`[virtual, inherited]`

Sends message to the internal channel.

Parameters:

	message	the log message to send. Please avoid characters '<' and '>' since they have a special meaning for HTML log output. These characters used to be filtered in HTML aggregators but it prevented messages to contain HTML tags on purpose, which proved to be convenient in the case only HTML aggregators are to be used.
	levelOfDetail	the level of detail of this message (level 5 by default).

Exceptions:

Log::LogException

if the operation failed.

Note:: This method had to be overriden because when forging the identifier from the object constructor, the class name is mangled. So we delay the construction of the identifier until the first log message in internal channel is sent. This is an elegant solution too, since objects which will not send messages on their private channel will not have to construct their identifier.; There may be a small lag when the first send is called, due to the identifier construction.; This method cannot have the const qualifier since it might have to forge a new identifier.

Reimplemented from Ceylan::Log::LogSource.

Referenced by Ceylan::Object::logState(), Ceylan::Module::Module(), Ceylan::Object::Object(), Ceylan::Module::~Module(), and Ceylan::Object::~Object().

void LogSource::sendToChannel	(	const std::string &	channel,
		const std::string &	message,
		LevelOfDetail	levelOfDetail = `DefaultLevelOfDetailForMessage`
	)			const `[virtual, inherited]`

Sends message to the specified channel, through known LogTransport.

Note:: This method is to be used when a message is to be sent to a channel different from the LogSource's internal one.

Parameters:

	channel	the channel name which will identify the targeted Loglistener.
	message	the log message to send. Please avoid characters '<' and '>' since they have a special meaning for HTML log output. These characters used to be filtered in HTML aggregators but it prevented messages to contain HTML tags on purpose, which proved to be convenient.
	levelOfDetail	the level of detail of this message (level 1 by default).

See also:: send with implied internal channel

Definition at line 142 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_level, CEYLAN_LOG, Ceylan::Log::LogSource::directSend(), and Ceylan::toString().

void Module::setAuthor ( const std::string & author ) [virtual, inherited]

Sets this module's author.

Definition at line 175 of file CeylanModule.cc.

References Ceylan::Module::_author.

Referenced by retrieveMetadata().

void Module::setAuthorMail ( const std::string & authorMail ) [virtual, inherited]

Sets this module's author e-mail address.

Definition at line 193 of file CeylanModule.cc.

References Ceylan::Module::_authorMail.

Referenced by retrieveMetadata().

void Loggable::setChannelName ( const std::string & channelName ) [inherited]

Sets this Logable channel name.

Reimplemented from Ceylan::Log::LogSource.

Definition at line 63 of file CeylanLoggable.cc.

References Ceylan::Log::Loggable::ProtocolName, and Ceylan::URI::ProtocolSeparator.

Referenced by Ceylan::Log::Loggable::Loggable().

void Module::setDescription ( const std::string & description ) [virtual, inherited]

Sets this module's description.

Definition at line 139 of file CeylanModule.cc.

References Ceylan::Module::_description.

Referenced by retrieveMetadata().

void Module::setHomePage ( const std::string & homePage ) [virtual, inherited]

Sets this module's home page URL.

Definition at line 157 of file CeylanModule.cc.

References Ceylan::Module::_homepageURL.

Referenced by retrieveMetadata().

void IdentifierOwner::setIdentifier ( Identifier & id ) [inherited]

Sets this IdentifierOwner's identifier.

Exceptions:

IdentifierNotAvailableException

if the operation failed.

Note:: This IdentifierOwner takes ownership of provided identifier.

Definition at line 101 of file CeylanIdentifierOwner.cc.

References Ceylan::IdentifierOwner::_id.

Referenced by Ceylan::Object::forgeIdentifier().

void LogSource::setLevelOfDetail ( LevelOfDetail newLevel ) [inherited]

Sets this LogSource level of detail of interest.

Definition at line 110 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_level.

void Module::setLicence ( const std::string & licence ) [virtual, inherited]

Sets this module's release licence.

Definition at line 232 of file CeylanModule.cc.

References Ceylan::Module::_licence.

Referenced by retrieveMetadata().

void Module::setName ( const std::string & name ) [virtual, inherited]

Sets the name of this module.

Exceptions:

ModuleException

if the operation failed.

Definition at line 121 of file CeylanModule.cc.

References Ceylan::Module::_name.

Referenced by retrieveMetadata().

void TextDisplayable::SetOutputFormat ( TextOutputFormat newOutputFormat ) [static, inherited]

Sets the current overall text format to be used by TextDisplayable instances.

Parameters:

newOutputFormat

the new output format.

Definition at line 72 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::Log::LogHolder::LogHolder().

void TextDisplayable::SetOutputFormat ( TextOutputFormat newOutputFormat ) [static, inherited]

Sets the current overall text format to be used by TextDisplayable instances.

Parameters:

newOutputFormat

the new output format.

Definition at line 72 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::Log::LogHolder::LogHolder().

void LogSource::setTransport ( LogTransport & newTransport ) [virtual, inherited]

Sets a new Log transport for this LogSource.

Definition at line 191 of file CeylanLogSource.cc.

References Ceylan::Log::LogSource::_transport, Ceylan::Log::LogSource::hasTransport(), Ceylan::Log::LogSource::unlinkTransport(), and Ceylan::Log::LogPlug::warning().

void Module::setVersion ( const Ceylan::Version & version ) [virtual, inherited]

Sets this module's version, which is copied internally.

Definition at line 211 of file CeylanModule.cc.

References Ceylan::Module::_version, Ceylan::Version::getMajorNumber(), Ceylan::Version::getMinorNumber(), Ceylan::Version::getReleaseNumber(), Ceylan::Version::setMajorNumber(), Ceylan::Version::setMinorNumber(), and Ceylan::Version::setReleaseNumber().

Referenced by Ceylan::Module::Module(), and retrieveMetadata().

const std::string TextDisplayable::ToString	(	std::list< TextDisplayable * >	displayables,
		Ceylan::VerbosityLevels	level = `Ceylan::high`
	)			`[static, inherited]`

Returns a user-friendly description of this list of pointers to text displayable instances.

Parameters:

	displayables	a list of pointers to TextDisplayable instances/
	level	the requested verbosity level.

Note:: Text output format is determined from overall settings.

See also:: toString, Ceylan::VerbosityLevels

Definition at line 45 of file CeylanTextDisplayable.cc.

References Ceylan::formatStringList().

const std::string TextDisplayable::ToString	(	std::list< TextDisplayable * >	displayables,
		Ceylan::VerbosityLevels	level = `Ceylan::high`
	)			`[static, inherited]`

Returns a user-friendly description of this list of pointers to text displayable instances.

Parameters:

	displayables	a list of pointers to TextDisplayable instances/
	level	the requested verbosity level.

Note:: Text output format is determined from overall settings.

See also:: toString, Ceylan::VerbosityLevels

Definition at line 45 of file CeylanTextDisplayable.cc.

References Ceylan::formatStringList().

const string Plugin::toString ( VerbosityLevels level = high ) const [virtual]

Returns a user-friendly description of the state of this object.

Parameters:

level

the requested verbosity level.

Note:: Text output format is determined from overall settings.

See also:: TextDisplayable

Reimplemented from Ceylan::Module.

Definition at line 506 of file CeylanPlugin.cc.

References _autoPrefix, _filename, getFilename(), Ceylan::Module::getName(), isOpen(), Ceylan::low, and Ceylan::medium.

void LogSource::unlinkTransport ( ) [protected, virtual, inherited]

Suppresses the link between this LogSource and its Log transport.

Definition at line 243 of file CeylanLogSource.cc.

Referenced by Ceylan::Log::LogSource::setTransport(), and Ceylan::Log::LogSource::~LogSource().

Member Data Documentation

bool Ceylan::Plugin::_autoPrefix [private]

Tells whether the plugin loader expects symbols to be prefixed according to CEYLAN_PLUGIN_* macros.

Definition at line 423 of file CeylanPlugin.h.

Referenced by toString().

std::string Ceylan::Log::LogSource::_channelName [protected, inherited]

Stores this LogSource channel name.

Definition at line 242 of file CeylanLogSource.h.

Referenced by Ceylan::Log::LogSource::getChannelName(), Ceylan::Log::LogSource::hasChannelName(), Ceylan::Log::LogSource::send(), and Ceylan::Log::LogSource::setChannelName().

std::string Ceylan::Plugin::_filename [private]

The user-specified filename of the plugin.

Definition at line 415 of file CeylanPlugin.h.

Referenced by getDataSymbol(), getFunctionSymbol(), and toString().

LevelOfDetail Ceylan::Log::LogSource::_level [protected, inherited]

The current level of detail of interest for this Log source.

Definition at line 246 of file CeylanLogSource.h.

Referenced by Ceylan::Log::LogSource::getLevelOfDetail(), Ceylan::Log::LogSource::sendToChannel(), Ceylan::Log::LogSource::setLevelOfDetail(), and Ceylan::Log::LogSource::toString().

TextDisplayable::TextOutputFormat TextDisplayable::_OutputFormat = rawText [static, protected, inherited]

The text format to be used currently by TextDisplayable instances.

Note:: Defaults to raw text.

Definition at line 158 of file CeylanTextDisplayable.h.

Referenced by Ceylan::TextDisplayable::GetOutputFormat(), and Ceylan::TextDisplayable::SetOutputFormat().

TextDisplayable::TextOutputFormat TextDisplayable::_OutputFormat = rawText [static, protected, inherited]

The text format to be used currently by TextDisplayable instances.

Note:: Defaults to raw text.

Definition at line 158 of file CeylanTextDisplayable.h.

Referenced by Ceylan::TextDisplayable::GetOutputFormat(), and Ceylan::TextDisplayable::SetOutputFormat().

SystemSpecificPluginHandle* Ceylan::Plugin::_pluginHandle [private]

The plugin handle returned by the loader.

Definition at line 411 of file CeylanPlugin.h.

Referenced by close(), getDataSymbol(), getEmbeddedName(), getFilename(), getFunctionSymbol(), getReferenceCount(), isOpen(), isResident(), makeResident(), and Plugin().

bool Ceylan::Object::_trackInstance [protected, inherited]

Tells whether this instance's lifecycle should be advertised in log system.

Definition at line 254 of file CeylanObject.h.

Referenced by Ceylan::Object::Object(), Ceylan::Object::toString(), and Ceylan::Object::~Object().

LogTransport* Ceylan::Log::LogSource::_transport [protected, inherited]

The LogTransport to be used for sending messages.

Definition at line 258 of file CeylanLogSource.h.

Referenced by Ceylan::Log::LogSource::directSend(), Ceylan::Log::LogSource::getTransport(), Ceylan::Log::LogSource::hasTransport(), and Ceylan::Log::LogSource::setTransport().

const LevelOfDetail Ceylan::Log::LogSource::DefaultLevelOfDetailForSource = 10 [static, inherited]

The default level of detail of a Log source.

Definition at line 221 of file CeylanLogSource.h.

Ceylan::System::FileLocator Plugin::PluginLocator [static]

This locator keeps the plugin search paths available.

Definition at line 363 of file CeylanPlugin.h.

Referenced by Plugin().

Ceylan::Uint16 Plugin::PluginSystemInitialized = 0 [static, protected]

Tells whether the plugin system is currently initialized, by recording the current number of times the system was requested minus the number of times it was released.

Definition at line 401 of file CeylanPlugin.h.

Referenced by Plugin(), and ~Plugin().

const string Loggable::ProtocolName = "loggable" [static, inherited]

Definition at line 122 of file CeylanLoggable.h.

Referenced by Ceylan::Log::Loggable::IsALoggableChannelName(), and Ceylan::Log::Loggable::setChannelName().

const std::string Plugin::SymbolMarker = CEYLAN_SYMBOL_MARKER [static]

The characters that will be added automatically between the plugin name and the loaded symbols if auto-prefix is on.

For example, retrieving the symbol 'my_test_constant' in plugin named 'ceylan-test-plugin' will cause the look-up of symbol 'ceylan_test_plugin_LTX_my_test_constant'.

Definition at line 376 of file CeylanPlugin.h.

The documentation for this class was generated from the following files:

Ceylan::Plugin Class Reference

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
