Ceylan::XML::XMLMarkup Class Reference

Describes a XML markup. More...

#include <CeylanXMLElement.h>

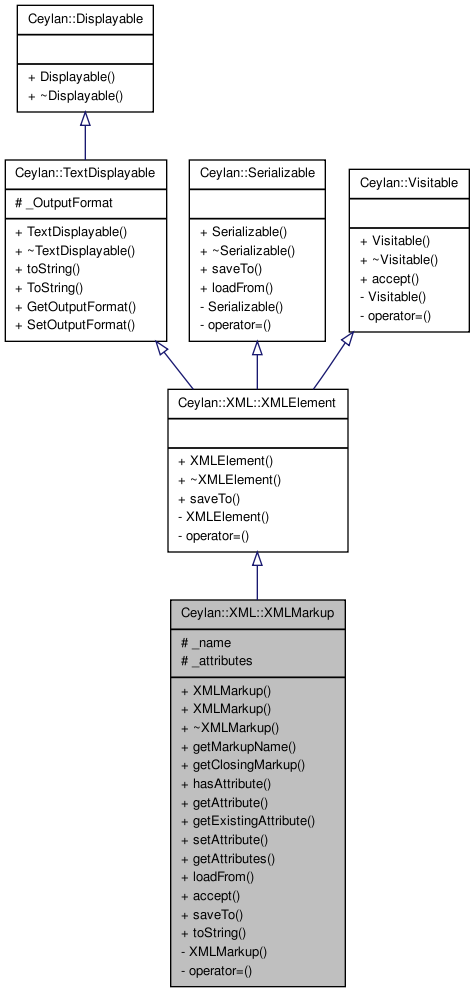

Inheritance diagram for Ceylan::XML::XMLMarkup:

[legend]

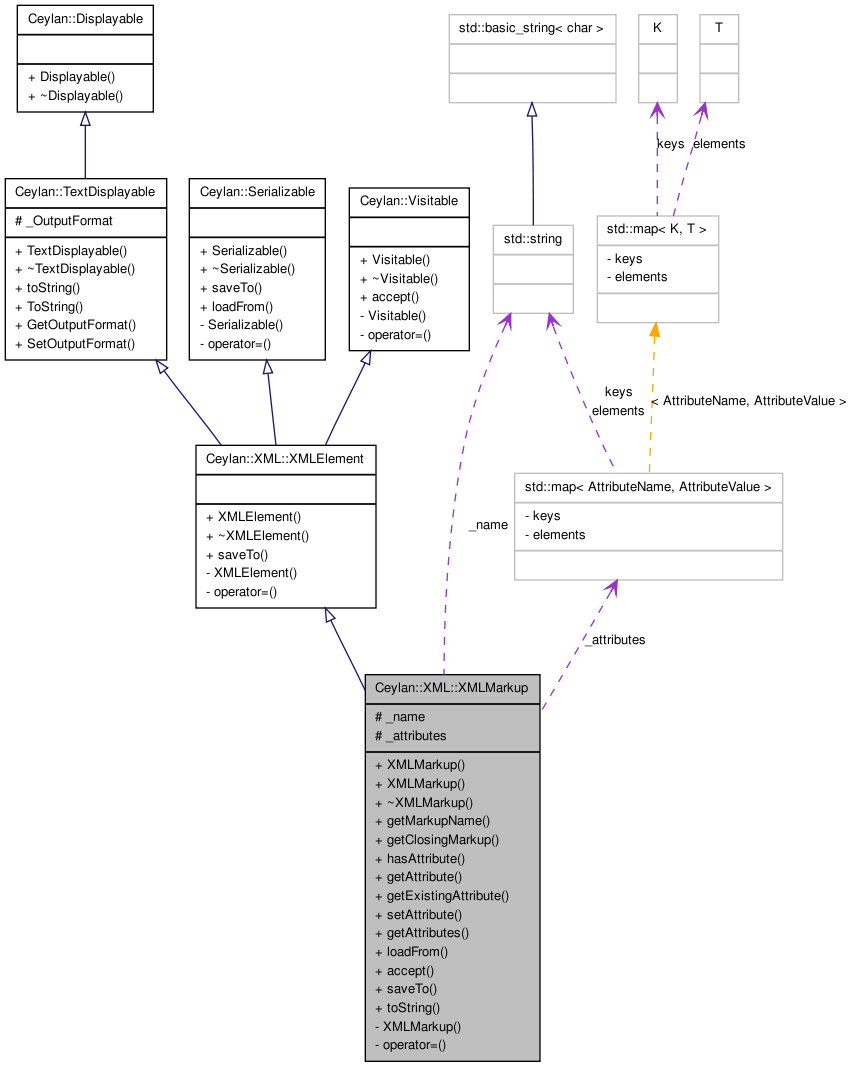

Collaboration diagram for Ceylan::XML::XMLMarkup:

[legend]

List of all members.

Public Types
enum	TextOutputFormat { rawText, html }
	Defines what text output formats for TextDisplayable instances are available. More...
Public Member Functions
	XMLMarkup ()
	Creates an empty XML markup.
	XMLMarkup (const MarkupName &name)
	Creates a named XML markup.
virtual	~XMLMarkup () throw ()
	Virtual destructor.
virtual MarkupName	getMarkupName () const
virtual std::string	getClosingMarkup () const
virtual bool	hasAttribute (const AttributeName &name) const
	Returns whether this attribute, specified by its name, is defined in this markup.
virtual AttributeValue	getAttribute (const AttributeName &name) const
	Returns the value of the attribute, specified by its name.
virtual AttributeValue	getExistingAttribute (const AttributeName &name) const
	Returns the value of the attribute, specified by its name.
virtual void	setAttribute (const AttributeName &name, const AttributeValue &value)
	Adds specified name-value pair as an attribute of this markup.
virtual AttributeMap &	getAttributes ()
	Returns a reference to the internal attribute map.
virtual void	loadFrom (System::InputStream &input)
	Loads a new instance state from specified stream.
virtual void	accept (Visitor &visitor)
	Allows given visitor to visit this object, thanks to a callback: 'visitor.visit( *this ) ;'.
virtual void	saveTo (System::OutputStream &output) const
	Saves the instance state to specified stream.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const
	Returns a user-friendly description of the state of this object.
Static Public Member Functions
static const std::string	ToString (std::list< TextDisplayable * > displayables, Ceylan::VerbosityLevels level=Ceylan::high)
	Returns a user-friendly description of this list of pointers to text displayable instances.
static TextOutputFormat	GetOutputFormat ()
	Returns the current overall text format to be used by TextDisplayable instances.
static void	SetOutputFormat (TextOutputFormat newOutputFormat)
	Sets the current overall text format to be used by TextDisplayable instances.
Protected Attributes
MarkupName	_name
	Name of the markup.
AttributeMap	_attributes
	Attributes of a XML markup, sort of tagged values, i.e.
Static Protected Attributes
static TextOutputFormat	_OutputFormat = rawText
	The text format to be used currently by TextDisplayable instances.
Private Member Functions
	XMLMarkup (const XMLMarkup &source)
	Copy constructor made private to ensure that it will never be called.
XMLMarkup &	operator= (const XMLMarkup &source)
	Assignment operator made private to ensure that it will never be called.

Detailed Description

Describes a XML markup.

A markup has a name and can have attributes, which are pairs of name and value.

Note:: The fact that it can enclose any number of XML elements is represented through the XML tree.

Definition at line 167 of file CeylanXMLElement.h.

Member Enumeration Documentation

enum Ceylan::TextDisplayable::TextOutputFormat [inherited]

Defines what text output formats for TextDisplayable instances are available.

Enumerator:

rawText
html

Definition at line 124 of file CeylanTextDisplayable.h.

Constructor & Destructor Documentation

XMLMarkup::XMLMarkup ( )

Creates an empty XML markup.

Definition at line 96 of file CeylanXMLElement.cc.

XMLMarkup::XMLMarkup ( const MarkupName & name ) [explicit]

Creates a named XML markup.

Parameters:

name

the markup name, for example 'para' for markup

.

Definition at line 104 of file CeylanXMLElement.cc.

XMLMarkup::~XMLMarkup ( ) throw () [virtual]

Virtual destructor.

Definition at line 112 of file CeylanXMLElement.cc.

Ceylan::XML::XMLMarkup::XMLMarkup ( const XMLMarkup & source ) [private]

Copy constructor made private to ensure that it will never be called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Note:: Made to avoid unwanted hidden clone of the Singleton.

Member Function Documentation

void XMLMarkup::accept ( Visitor & visitor ) [virtual]

Allows given visitor to visit this object, thanks to a callback: 'visitor.visit( *this ) ;'.

Implements the Visitable interface.

Note:: The specified visitor must be a XML visitor, otherwise a VisitException is thrown.

Implements Ceylan::Visitable.

Definition at line 203 of file CeylanXMLElement.cc.

References Ceylan::Visitor::toString(), and Ceylan::XML::XMLVisitor::visit().

string XMLMarkup::getAttribute ( const AttributeName & name ) const [virtual]

Returns the value of the attribute, specified by its name.

Parameters:

name

the attribute name.

Returns:: the value associated with the attribute name, or an empty string if the attribute is not defined in this markup.

Definition at line 146 of file CeylanXMLElement.cc.

References _attributes.

AttributeMap & XMLMarkup::getAttributes ( ) [virtual]

Returns a reference to the internal attribute map.

This method may be used to manage the attributes of a markup from outside, for example when reading an XML file.

Definition at line 184 of file CeylanXMLElement.cc.

References _attributes.

Referenced by Ceylan::XML::XMLParser::handleNextElement().

string XMLMarkup::getClosingMarkup ( ) const [virtual]

Definition at line 128 of file CeylanXMLElement.cc.

References _name.

Referenced by Ceylan::XML::XMLSavingVisitor::visit().

string XMLMarkup::getExistingAttribute ( const AttributeName & name ) const [virtual]

Returns the value of the attribute, specified by its name.

Parameters:

name

the attribute name.

Returns:: the value associated with the attribute name.

Exceptions:

XMLElementException

if no such attribute could be found.

Definition at line 160 of file CeylanXMLElement.cc.

References _attributes.

MarkupName XMLMarkup::getMarkupName ( ) const [virtual]

Definition at line 119 of file CeylanXMLElement.cc.

References _name.

Referenced by Ceylan::XML::XMLSearchingVisitor::visit().

TextDisplayable::TextOutputFormat TextDisplayable::GetOutputFormat ( ) [static, inherited]

Returns the current overall text format to be used by TextDisplayable instances.

Definition at line 63 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::formatStringList(), Ceylan::formatStringMap(), toString(), Ceylan::Maths::Linear::Vector3::toString(), Ceylan::Maths::Linear::Vector2::toString(), Ceylan::Maths::Linear::Tripoint::toString(), Ceylan::Module::toString(), Ceylan::Maths::Linear::Matrix3::toString(), Ceylan::Maths::Linear::Matrix2::toString(), Ceylan::Maths::Linear::HomogeneousMatrix3::toString(), and Ceylan::Maths::Linear::Bipoint::toString().

bool XMLMarkup::hasAttribute ( const AttributeName & name ) const [virtual]

Returns whether this attribute, specified by its name, is defined in this markup.

Parameters:

name

the attribute name.

Returns:: true iff an attribute with this name already exists for this markup.

Definition at line 137 of file CeylanXMLElement.cc.

References _attributes.

void XMLMarkup::loadFrom ( System::InputStream & input ) [virtual]

Loads a new instance state from specified stream.

Parameters:

input

the input stream from which the state will be read.

Exceptions:

SerializationException

if the operation failed.

Implements Ceylan::Serializable.

Definition at line 193 of file CeylanXMLElement.cc.

XMLMarkup& Ceylan::XML::XMLMarkup::operator= ( const XMLMarkup & source ) [private]

Assignment operator made private to ensure that it will never be called.

The compiler should complain whenever this undefined operator is called, implicitly or not.

void XMLMarkup::saveTo ( System::OutputStream & output ) const [virtual]

Saves the instance state to specified stream.

Parameters:

output

the output stream to which the state will be written.

Exceptions:

SerializationException

if the operation failed.

Note:: The toString is not used as they do not serve the same purpose, and differ in terms of encoding.

Implements Ceylan::XML::XMLElement.

Definition at line 219 of file CeylanXMLElement.cc.

References _attributes, _name, and Ceylan::System::OutputStream::write().

Referenced by Ceylan::XML::XMLSavingVisitor::visit().

void XMLMarkup::setAttribute	(	const AttributeName &	name,
		const AttributeValue &	value
	)			`[virtual]`

Adds specified name-value pair as an attribute of this markup.

Parameters:

	name	the attribute name.
	value	the attribute value.

If an attribute with the same name was already existing, its value is updated with this newer value.

Definition at line 175 of file CeylanXMLElement.cc.

References _attributes.

void TextDisplayable::SetOutputFormat ( TextOutputFormat newOutputFormat ) [static, inherited]

Sets the current overall text format to be used by TextDisplayable instances.

Parameters:

newOutputFormat

the new output format.

Definition at line 72 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::Log::LogHolder::LogHolder().

const std::string TextDisplayable::ToString	(	std::list< TextDisplayable * >	displayables,
		Ceylan::VerbosityLevels	level = `Ceylan::high`
	)			`[static, inherited]`
