Ceylan::Maths::Linear::Matrix Class Reference

#include <CeylanMatrix.h>

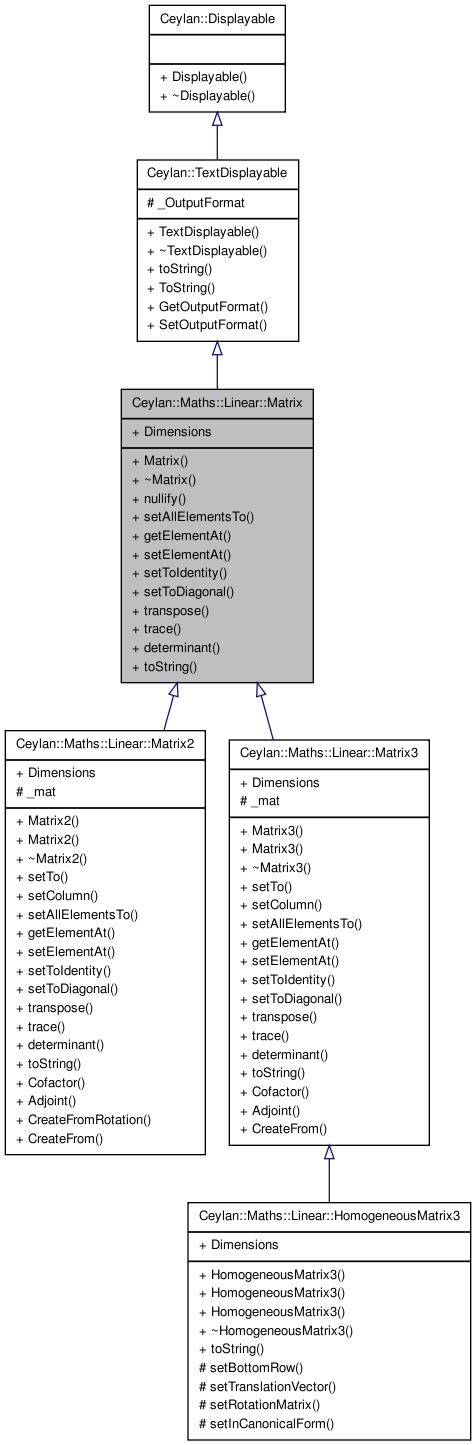

Inheritance diagram for Ceylan::Maths::Linear::Matrix:

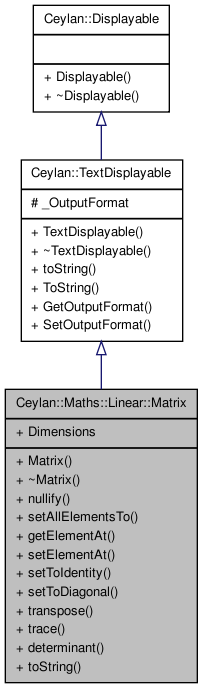

Collaboration diagram for Ceylan::Maths::Linear::Matrix:

Public Types
enum	TextOutputFormat { rawText, html }
	Defines what text output formats for TextDisplayable instances are available. More...
Public Member Functions
	Matrix ()
	Constructs a new matrix.
virtual	~Matrix () throw ()
	Basic virtual destructor.
virtual void	nullify ()
	Sets this matrix to the null matrix (all elements zeroed).
virtual void	setAllElementsTo (Real commonValue)=0
	Sets this matrix so that all its elements equal commonValue.
virtual Real	getElementAt (MatrixIndex abscissa, MatrixIndex ordinate) const =0
	Returns indexed element.
virtual void	setElementAt (MatrixIndex abscissa, MatrixIndex ordinate, Real newValue)=0
	Sets indexed element to specified value.
virtual void	setToIdentity ()
	Sets this matrix to the identity matrix.
virtual void	setToDiagonal (Real diagonalTerm)=0
	Sets this matrix to the a diagonal matrix whose diagonal term is diagonalTerm.
virtual void	transpose ()=0
	Tranposes this matrix.
virtual Real	trace () const =0
	Computes this matrix's trace.
virtual Real	determinant () const =0
	Computes this matrix's determinant.
virtual const std::string	toString (VerbosityLevels level=high) const
	Returns a user-friendly description of the state of this object.
Static Public Member Functions
static const std::string	ToString (std::list< TextDisplayable * > displayables, Ceylan::VerbosityLevels level=Ceylan::high)
	Returns a user-friendly description of this list of pointers to text displayable instances.
static TextOutputFormat	GetOutputFormat ()
	Returns the current overall text format to be used by TextDisplayable instances.
static void	SetOutputFormat (TextOutputFormat newOutputFormat)
	Sets the current overall text format to be used by TextDisplayable instances.
Static Public Attributes
static const MatrixIndex	Dimensions = 0
	Tells what is the dimension for this Matrix.
Static Protected Attributes
static TextOutputFormat	_OutputFormat = rawText
	The text format to be used currently by TextDisplayable instances.

Detailed Description

Definition at line 83 of file CeylanMatrix.h.

Member Enumeration Documentation

enum Ceylan::TextDisplayable::TextOutputFormat [inherited]

Defines what text output formats for TextDisplayable instances are available.

Enumerator:

rawText
html

Definition at line 124 of file CeylanTextDisplayable.h.

Constructor & Destructor Documentation

Matrix::Matrix ( )

Constructs a new matrix.

Definition at line 39 of file CeylanMatrix.cc.

Matrix::~Matrix ( ) throw () [virtual]

Basic virtual destructor.

Definition at line 46 of file CeylanMatrix.cc.

Member Function Documentation

virtual Real Ceylan::Maths::Linear::Matrix::determinant ( ) const [pure virtual]

Computes this matrix's determinant.

Implemented in Ceylan::Maths::Linear::Matrix2, and Ceylan::Maths::Linear::Matrix3.

virtual Real Ceylan::Maths::Linear::Matrix::getElementAt	(	MatrixIndex	abscissa,
		MatrixIndex	ordinate
	)			const `[pure virtual]`

Returns indexed element.

Index ranges from 0 to Dimensions-1 for both dimensions.

Exceptions:

MathsException

if index is out of bounds and if in debug mode.

Implemented in Ceylan::Maths::Linear::Matrix2, and Ceylan::Maths::Linear::Matrix3.

TextDisplayable::TextOutputFormat TextDisplayable::GetOutputFormat ( ) [static, inherited]

Returns the current overall text format to be used by TextDisplayable instances.

Definition at line 63 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::formatStringList(), Ceylan::formatStringMap(), Ceylan::XML::XMLMarkup::toString(), Ceylan::Maths::Linear::Vector3::toString(), Ceylan::Maths::Linear::Vector2::toString(), Ceylan::Maths::Linear::Tripoint::toString(), Ceylan::Module::toString(), Ceylan::Maths::Linear::Matrix3::toString(), Ceylan::Maths::Linear::Matrix2::toString(), Ceylan::Maths::Linear::HomogeneousMatrix3::toString(), and Ceylan::Maths::Linear::Bipoint::toString().

void Matrix::nullify ( ) [virtual]

Sets this matrix to the null matrix (all elements zeroed).

Definition at line 53 of file CeylanMatrix.cc.

References setAllElementsTo().

virtual void Ceylan::Maths::Linear::Matrix::setAllElementsTo ( Real commonValue ) [pure virtual]

Sets this matrix so that all its elements equal commonValue.

Implemented in Ceylan::Maths::Linear::Matrix2, and Ceylan::Maths::Linear::Matrix3.

Referenced by nullify().

virtual void Ceylan::Maths::Linear::Matrix::setElementAt	(	MatrixIndex	abscissa,
		MatrixIndex	ordinate,
		Real	newValue
	)			`[pure virtual]`

Sets indexed element to specified value.

Index ranges from 0 to Dimensions-1 for both dimensions.

Exceptions:

MathsException

if index is out of bounds and if in debug mode.

Implemented in Ceylan::Maths::Linear::Matrix2, and Ceylan::Maths::Linear::Matrix3.

void TextDisplayable::SetOutputFormat ( TextOutputFormat newOutputFormat ) [static, inherited]

Sets the current overall text format to be used by TextDisplayable instances.

Parameters:

newOutputFormat

the new output format.

Definition at line 72 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::Log::LogHolder::LogHolder().

virtual void Ceylan::Maths::Linear::Matrix::setToDiagonal ( Real diagonalTerm ) [pure virtual]

Sets this matrix to the a diagonal matrix whose diagonal term is diagonalTerm.

Implemented in Ceylan::Maths::Linear::Matrix2, and Ceylan::Maths::Linear::Matrix3.

Referenced by setToIdentity().

void Matrix::setToIdentity ( ) [virtual]

Sets this matrix to the identity matrix.

Reimplemented in Ceylan::Maths::Linear::Matrix2, and Ceylan::Maths::Linear::Matrix3.

Definition at line 62 of file CeylanMatrix.cc.

References setToDiagonal().

Referenced by Ceylan::Locatable2D::blankLocalReferential().

const std::string TextDisplayable::ToString	(	std::list< TextDisplayable * >	displayables,
		Ceylan::VerbosityLevels	level = `Ceylan::high`
	)			`[static, inherited]`
