Ceylan::System::OutputStream Class Reference

Abstract output stream class used in IPC. More...

#include <CeylanOutputStream.h>

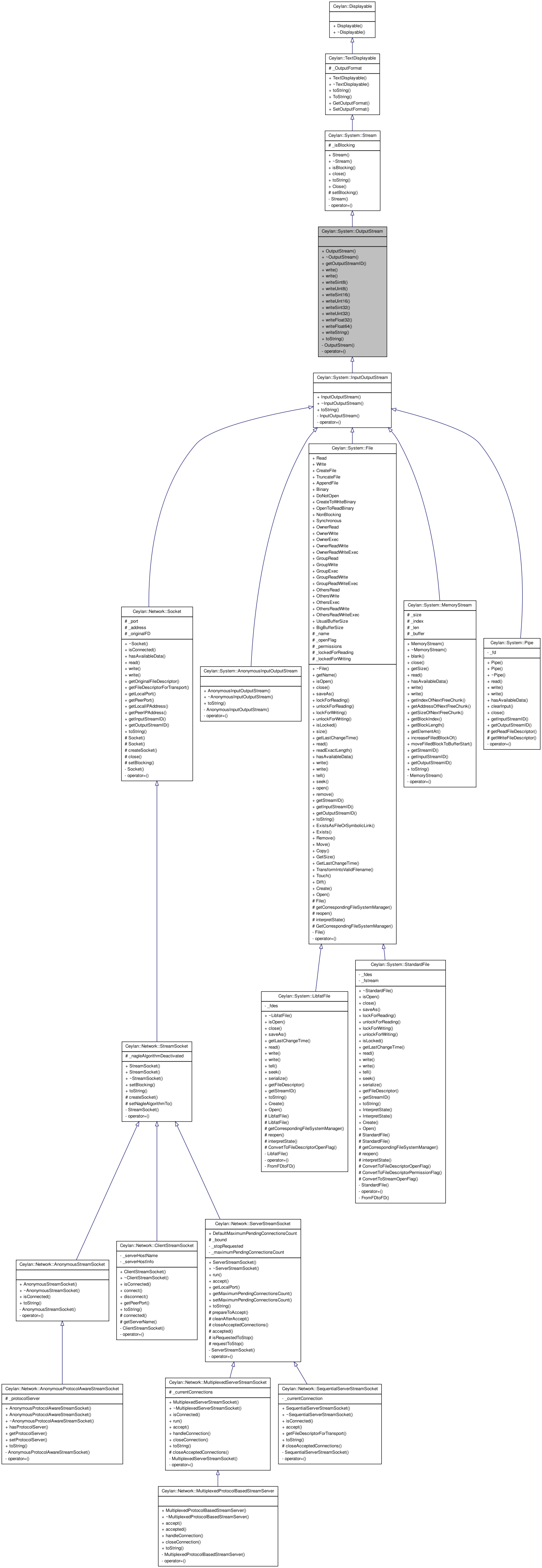

Inheritance diagram for Ceylan::System::OutputStream:

[legend]

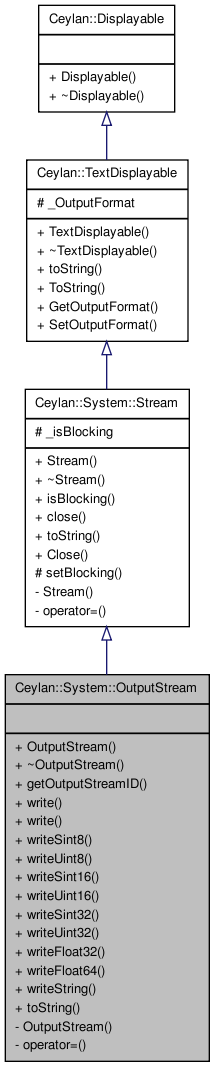

Collaboration diagram for Ceylan::System::OutputStream:

[legend]

List of all members.

Classes
class	OutputStreamException
	Exception thrown when an operation on an OutputStream failed. More...
class	WriteFailedException
	Exception thrown when a write operation failed. More...
Public Types
enum	TextOutputFormat { rawText, html }
	Defines what text output formats for TextDisplayable instances are available. More...
Public Member Functions
	OutputStream (bool blocking=true)
	Basic constructor for OutputStream.
virtual	~OutputStream () throw ()
	Basic destructor.
virtual StreamID	getOutputStreamID () const =0
	Returns the output stream's unique ID.
virtual Size	write (const std::string &message)
	Writes message to this OutputStream.
virtual Size	write (const Ceylan::Byte *buffer, Size length)
	Writes up to maxLength bytes from the specified buffer to this OutputStream.
virtual void	writeSint8 (Ceylan::Sint8 toWrite)
	Writes a Ceylan::Sint8 to this output stream.
virtual void	writeUint8 (Ceylan::Uint8 toWrite)
	Writes a Ceylan::Uint8 to this output stream.
virtual void	writeSint16 (Ceylan::Sint16 toWrite)
	Writes a Ceylan::Sint16 to this output stream.
virtual void	writeUint16 (Ceylan::Uint16 toWrite)
	Writes a Ceylan::Uint16 to this output stream.
virtual void	writeSint32 (Ceylan::Sint32 toWrite)
	Writes a Ceylan::Sint32 to this output stream.
virtual void	writeUint32 (Ceylan::Uint32 toWrite)
	Writes a Ceylan::Uint32 to this output stream.
virtual void	writeFloat32 (Ceylan::Float32 toWrite)
	Writes a Ceylan::Uint32 to this output stream.
virtual void	writeFloat64 (Ceylan::Float64 toWrite)
	Writes a Ceylan::Uint32 to this output stream.
virtual void	writeString (const std::string &toWrite)
	Writes a string to this output stream.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const
	Returns an user-friendly description of the state of this object.
bool	isBlocking () const
	Tells whether this stream is in blocking mode (if true), or in non-blocking mode (if false).
virtual bool	close ()=0
	Closes the stream.
Static Public Member Functions
static bool	Close (FileDescriptor &fd)
	Closes and zeroes the specified file descriptor.
static const std::string	ToString (std::list< TextDisplayable * > displayables, Ceylan::VerbosityLevels level=Ceylan::high)
	Returns a user-friendly description of this list of pointers to text displayable instances.
static TextOutputFormat	GetOutputFormat ()
	Returns the current overall text format to be used by TextDisplayable instances.
static void	SetOutputFormat (TextOutputFormat newOutputFormat)
	Sets the current overall text format to be used by TextDisplayable instances.
Protected Member Functions
virtual void	setBlocking (bool newStatus)
	Sets the blocking mode of this stream.
Protected Attributes
bool	_isBlocking
	Stores whether the stream is in blocking mode.
Static Protected Attributes
static TextOutputFormat	_OutputFormat = rawText
	The text format to be used currently by TextDisplayable instances.
Private Member Functions
	OutputStream (const OutputStream &source)
	Copy constructor made private to ensure that it will be never called.
OutputStream &	operator= (const OutputStream &source)
	Assignment operator made private to ensure that it will be never called.

Detailed Description

Abstract output stream class used in IPC.

See also:: Socket, Pipe, File, AnonymousInputStream, InputStream

Note:: The virtual inheritance has been set for classes such as System::File which are both input and output streams: had the Stream class a data member, it would not be duplicated in a System::File instance (it would be allocated only once).

Definition at line 57 of file CeylanOutputStream.h.

Member Enumeration Documentation

enum Ceylan::TextDisplayable::TextOutputFormat [inherited]

Defines what text output formats for TextDisplayable instances are available.

Enumerator:

rawText
html

Definition at line 124 of file CeylanTextDisplayable.h.

Constructor & Destructor Documentation

OutputStream::OutputStream ( bool blocking = true ) [explicit]

Basic constructor for OutputStream.

Parameters:

blocking

tells whether this output stream should be created in blocking mode (the default) or in non-blocking mode (if supported).

Definition at line 52 of file CeylanOutputStream.cc.

OutputStream::~OutputStream ( ) throw () [virtual]

Basic destructor.

Definition at line 60 of file CeylanOutputStream.cc.

Ceylan::System::OutputStream::OutputStream ( const OutputStream & source ) [private]

Copy constructor made private to ensure that it will be never called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Member Function Documentation

bool Stream::Close ( FileDescriptor & fd ) [static, inherited]

Closes and zeroes the specified file descriptor.

It is passed by address so that this function can set it to zero on successful close.

Returns:: true iff an operation had to be performed.

Exceptions:

CloseException

if the close operation failed.

Definition at line 114 of file CeylanStream.cc.

References Ceylan::System::Stream::close(), generalUtils::false, Ceylan::toString(), and generalUtils::true.

Referenced by Ceylan::System::StandardFile::close(), Ceylan::Network::Socket::close(), Ceylan::System::Pipe::close(), and Ceylan::System::LibfatFile::close().

virtual bool Ceylan::System::Stream::close ( ) [pure virtual, inherited]

Closes the stream.

Returns:: true iff an operation had to be performed.

Exceptions:

CloseException

if the close operation failed.

Implemented in Ceylan::Network::Socket, Ceylan::System::File, Ceylan::System::LibfatFile, Ceylan::System::MemoryStream, Ceylan::System::Pipe, and Ceylan::System::StandardFile.

Referenced by Ceylan::System::Stream::Close().

TextDisplayable::TextOutputFormat TextDisplayable::GetOutputFormat ( ) [static, inherited]

Returns the current overall text format to be used by TextDisplayable instances.

Definition at line 63 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::formatStringList(), Ceylan::formatStringMap(), Ceylan::XML::XMLMarkup::toString(), Ceylan::Maths::Linear::Vector3::toString(), Ceylan::Maths::Linear::Vector2::toString(), Ceylan::Maths::Linear::Tripoint::toString(), Ceylan::Module::toString(), Ceylan::Maths::Linear::Matrix3::toString(), Ceylan::Maths::Linear::Matrix2::toString(), Ceylan::Maths::Linear::HomogeneousMatrix3::toString(), and Ceylan::Maths::Linear::Bipoint::toString().

virtual StreamID Ceylan::System::OutputStream::getOutputStreamID ( ) const [pure virtual]

Returns the output stream's unique ID.

Exceptions:

OutputStreamException

if the operation failed, for example if this output stream has not received a valid identifier yet.

Implemented in Ceylan::Network::Socket, Ceylan::System::File, Ceylan::System::MemoryStream, and Ceylan::System::Pipe.

Referenced by Ceylan::System::Process::RedirectStderr(), Ceylan::System::Process::RedirectStdout(), and toString().

bool Stream::isBlocking ( ) const [inherited]

Tells whether this stream is in blocking mode (if true), or in non-blocking mode (if false).

Definition at line 93 of file CeylanStream.cc.

References Ceylan::System::Stream::_isBlocking.

Referenced by Ceylan::Network::StreamSocket::createSocket(), and Ceylan::Network::Socket::toString().

OutputStream& Ceylan::System::OutputStream::operator= ( const OutputStream & source ) [private]

Assignment operator made private to ensure that it will be never called.

The compiler should complain whenever this undefined operator is called, implicitly or not.

void Stream::setBlocking ( bool newStatus ) [protected, virtual, inherited]

Sets the blocking mode of this stream.

Parameters:

newStatus

if true, sets the stream in blocking mode, if false set to non-blocking mode. If the stream is already in the target state, nothing is done.

Exceptions:

NonBlockingNotSupportedException

if the operation failed or is not supported.

Note:: This default implementation always raises its exception, streams that supports non-blocking access have to override it.

Reimplemented in Ceylan::Network::Socket, and Ceylan::Network::StreamSocket.

Definition at line 175 of file CeylanStream.cc.

void TextDisplayable::SetOutputFormat ( TextOutputFormat newOutputFormat ) [static, inherited]

Sets the current overall text format to be used by TextDisplayable instances.

Parameters:

newOutputFormat

the new output format.

Definition at line 72 of file CeylanTextDisplayable.cc.

References Ceylan::TextDisplayable::_OutputFormat.

Referenced by Ceylan::Log::LogHolder::LogHolder().

const std::string TextDisplayable::ToString	(	std::list< TextDisplayable * >	displayables,
		Ceylan::VerbosityLevels	level = `Ceylan::high`
	)			`[static, inherited]`

Returns a user-friendly description of this list of pointers to text displayable instances.

Parameters:

	displayables	a list of pointers to TextDisplayable instances/
	level	the requested verbosity level.

Note:: Text output format is determined from overall settings.

See also:: toString, Ceylan::VerbosityLevels

Definition at line 45 of file CeylanTextDisplayable.cc.

References Ceylan::formatStringList().

const std::string OutputStream::toString ( Ceylan::VerbosityLevels level = Ceylan::high ) const [virtual]

Returns an user-friendly description of the state of this object.

Parameters:

level

the requested verbosity level.

Note:: Text output format is determined from overall settings.

See also:: TextDisplayable

Implements Ceylan::System::Stream.

Reimplemented in Ceylan::Network::AnonymousProtocolAwareStreamSocket, Ceylan::Network::AnonymousStreamSocket, Ceylan::Network::ClientStreamSocket, Ceylan::Network::MultiplexedProtocolBasedStreamServer, Ceylan::Network::MultiplexedServerStreamSocket, Ceylan::Network::SequentialServerStreamSocket, Ceylan::Network::ServerStreamSocket, Ceylan::Network::Socket, Ceylan::Network::StreamSocket, Ceylan::System::AnonymousInputOutputStream, Ceylan::System::File, Ceylan::System::InputOutputStream, Ceylan::System::LibfatFile, Ceylan::System::MemoryStream, and Ceylan::System::StandardFile.

Definition at line 318 of file CeylanOutputStream.cc.

References getOutputStreamID().

Referenced by Ceylan::XML::XMLSavingVisitor::toString().

Size OutputStream::write	(	const Ceylan::Byte *	buffer,
		Size	length
	)			`[virtual]`

Writes up to maxLength bytes from the specified buffer to this OutputStream.

Parameters:

	buffer	the buffer where to find bytes that must be written. Its size must be at least 'length' bytes.
	length	the maximum number of bytes that should be read.

Returns:: The number of bytes actually written, which should be equal to 'length'.

Exceptions:

WriteFailedException

if a write error occurred.

Note:: This method is not pure virtual so that other methods using it can be defined here. However its OutputStream implementation just throws a WriteFailedException to remember it has to be overloaded.

Reimplemented in Ceylan::Network::Socket, Ceylan::System::File, Ceylan::System::LibfatFile, Ceylan::System::MemoryStream, Ceylan::System::Pipe, and Ceylan::System::StandardFile.

Definition at line 78 of file CeylanOutputStream.cc.

Size OutputStream::write ( const std::string & message ) [virtual]

Writes message to this OutputStream.

Parameters:

message

the message to write.

Returns:: The number of bytes actually written, which should be equal to the size of the string or lower.

Exceptions:

WriteFailed

if a write error occurred.

Note:: This method is not pure virtual so that other methods using it can be defined here. However its OutputStream implementation just throws a WriteFailedException to remember it has to be overloaded.

Reimplemented in Ceylan::Network::Socket, Ceylan::System::File, Ceylan::System::LibfatFile, Ceylan::System::MemoryStream, Ceylan::System::Pipe, and Ceylan::System::StandardFile.

Definition at line 67 of file CeylanOutputStream.cc.

Referenced by Ceylan::XML::XMLSavingVisitor::decrementHeight(), Ceylan::XML::XMLText::saveTo(), Ceylan::XML::XMLMarkup::saveTo(), Ceylan::XML::XMLSavingVisitor::visit(), writeFloat32(), writeFloat64(), writeSint16(), writeSint32(), writeSint8(), writeString(), writeUint16(), writeUint32(), and writeUint8().
